Glass Partition

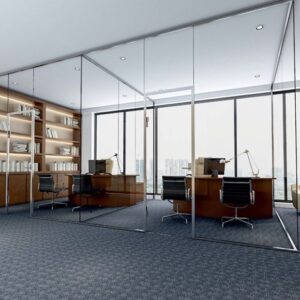

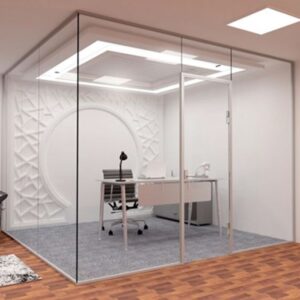

The ALTERRA Demountable Partition System offers solutions for interior glass partitions with minimal framing. The ALT100 SGU wall profiles are available in 100x30mm for single & double glazing. Door rebate frames, sized at 100x30mm, serve as a common door profile for both swing and sliding doors.  Swing door profiles (70x35mm) are compatible with self-closing hinges for frameless and framed single-action doors up to 100 kg.   Sliding door profiles (70x35mm) support manual sliding door elements up to 80 kg weight capacity. The system is suitable for installation to walls, floors, and ceilings.

The system includes intermediate slim junction profiles for glass-to-glass vertical joints, 90-degree L junction, and T junction profiles, adaptable to various room configurations. Additional components include overhead panel profiles, sliding door inline tracks, recess profiles, pocket door recess profiles, pinch-free profiles for pivot doors, solid wall interface profiles, carpet-to-tile transition profiles, Brooklyn stick-on profiles, and wide junctions (T, 180, 90 degrees) for diverse assembly designs.

ALT100SGU profiles accommodate fixed partition glass thicknesses of 10/12/13.52mm and glass/stile/timber door thicknesses of 10, 12, and 35mm. Profiles are supplied in EV1/Black anodized finish, complete with necessary clips, gripper clamps, connectors, seals, dormakaba hardware, and accessories, tailored to client design requirements.

The system provides benefits such as concealed sealing, electrical cable routing, carpet edge covering, adjustable covers, concealed door hardware mounting, enhanced stability with gripper clamps, and improved acoustic performance. The product is environmentally friendly, holding an EPD declaration.

Key Features and Specs:
System: ALTERRA Demountable Partition System
Application: Interior glass partitions
Wall Profiles: ALT100 SGU, 100x30mm (single & double glazing)
Door Rebate Frames: 100x30mm (common for swing and sliding doors)
Door Profiles: 70x35mm
Swing Door Capacity: Up to 100 kg, with self-closing hinges (frameless and framed single action)
Sliding Door Capacity: Up to 80 kg (manual)
Installation: Wall, floor, and ceiling
Junction Profiles: Slim (glass-to-glass), 90-degree L, T junction
Additional Profiles/Components: Overhead panel, sliding door inline track, recess, pocket door recess, pinch-free (pivot door), solid wall interface, carpet-to-tile transition, Brooklyn stick-on, wide junctions (T, 180, 90 degrees)
Fixed Partition Glass Thickness: 10/12/13.52mm
Door Glass/Stile/Timber Thickness: 10, 12, and 35mm
Finish: EV1/Black anodized
Included: Clips, gripper clamps, connectors, seals, dormakaba hardware, accessories (per client design)
Benefits: Concealed sealing, electrical cable routing, carpet edge covering, adjustable covers, concealed door hardware mounting, stability (gripper clamp), acoustic performance
Environmental: EPD declaration
Area of Application: Office cabins, Corridor Wall, Conference room, Stairwall/Lobby
Dimensions:
Glass thickness: 10mm, 12mm & 13.52mm toughened glass, Concealed sealing (No visible Gaskets/Seals) with stability gripper clamp

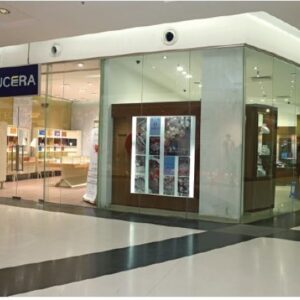

The system involves the installation of frameless partitions using 8/10/12 mm clear toughened glass, secured with dormakaba stainless steel patch fittings and/or wall connecting profiles (PT/WCP standard).

Patch fittings include:
PT 90 / 91 / 92
WCP secure / non-secure central connector
PT-91 corner connector
PT-92 side connector
SM1305 – glass to glass center connector
The installation also includes perimeter sealing of glass-to-glass joints with silicon sealants. The work is to be completed in all respects as per approved drawings and to the satisfaction of the engineer-in-charge/architect consultant.
Key Features and Specs:
Partition Type: Frameless fixed glass partition
Fittings:
Stainless steel patch fittings (dormakaba PT series)
Stainless steel wall connecting profiles (dormakaba WCP series)
Glass: 8/10/12 mm clear toughened glass
Fittings Included:
PT 90 / 91 / 92
WCP secure / non-secure central connector
PT-91 corner connector
PT-92 side connector
SM1305 – glass to glass center connector
Sealing: Perimeter sealing of glass-to-glass joints with silicon sealants
Installation: As per approved drawings
Approval: To the satisfaction of the engineer-in-charge/architect consultant
Area of Application: Office area, Internal partition.
Dimensions:
Glass thickness: 12mm toughened glass
