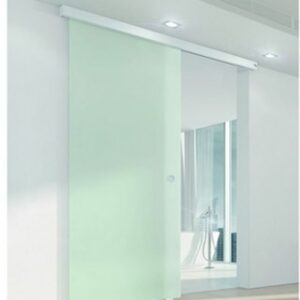

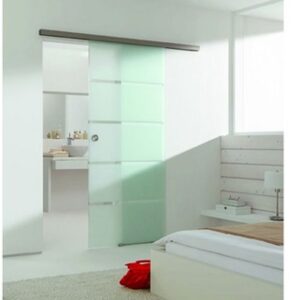

Sliding Door With Soft Closing

The dormakaba Muto L 80 Sliding system includes the track and accessories for Ceiling/Wall/On Glass fixing. It is suitable for doors weighing up to 80 kg, with a maximum door width of 1500mm and a maximum door height of 3000mm. The standard track length is 3000mm, provided in SSS (Satin Stainless Steel) finish. This system is suitable for both single and double panel applications and has been tested to 200,000 cycles, conforming to DIN EN 1527 standards. It is compatible with glass doors (8-13.52mm) and wooden doors (30-50mm).

Key Features and Specs:
System: dormakaba Muto L 80 Sliding system
Application: Ceiling/Wall/On Glass fixing
Max. Door Weight: 80 kg
Max. Door Width: 1500mm
Max. Door Height: 3000mm
Standard Track Length: 3000mm
Track Finish: SSS (Satin Stainless Steel)
Panel Type: Single and Double Panel
Testing: Tested to 200,000 cycles
Standards: Conforms to EN 1527 & EN 1670
Glass Door Thickness: 8-13.52mm
Wooden Door Thickness: 30-50mm
Door dimension: Max. 1500mm (Width) Max. 3000mm (Height) Max. 80 Kgs. (Weight/ Panel)
Glass Thickness: 8 to 13.52mm TSG
Track Dimension: Width-71mm & Height-58mm
Area of Application: Internal office doors, Internal doors in private homes.
Advantages/Options: Optional Features: Soft Closing (Dormotion – Closing and Opening Side), Synchro, Timber door.
Options : 1. With and Without Sidelight System 2. Dormotion (Both Closing & Opening side) 3. Synchro 4 Timber Door Application 5. Wall / Ceiling / On Glass
Electric Details Timber door : Wood thickness : 30mm to 50mm

Dimensions:
Max. 1500mm (Width)
Max. 3000mm (Height)
Max. 80 Kgs. (Weight/ Panel)
Glass Thickness : 8 to 13.52mm
TSG Track Dimension : Width-71mm & Height-58mm
