HORIZONTAL SLIDING WALL – HSW( Easy Safe)

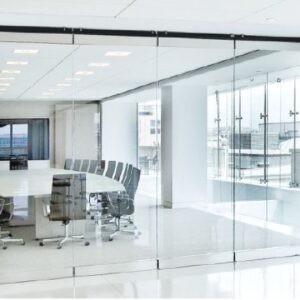

The HSW-G(ES) system is a manual toughened glass sliding shop front system without a floor guide. It features an aluminum track rail (72 x 75 mm) and a stacking section, prepared for underbolting to an aligned substructure (provided by others). Panels are equipped with easy-action plastic-tyred track rollers and top brush seals on both sides. The system incorporates two-part glazing rails (top and bottom) that can be aligned with the panels using alternate-side screw fixings. The installed panels offer a height adjustment range of ± 5 mm. The system accommodates glass thicknesses from 10 to 19mm, specifically: 10mm to 12mm with line profiles, and 13.52mm to 19mm without line profiles. Line profiles, designed to make doors draught-proof, are individually manufactured and must be considered during the horizontal wall system design.
Key Features and Specs:
System Type: Manual toughened glass sliding shop front
Floor Guide: No floor guide
Track Rail: Aluminum, 72 x 75 mm
Substructure: Underbolting to aligned substructure (by others)
Panel Movement: Individual Driving
Track Rollers: Easy-action plastic-tyred
Seals: Top brush seals on both sides of panels
Glazing Rails: Two-part (top and bottom), aligned with panels using alternate-side screw fixings
Height Adjustment: ± 5 mm
Glass Thickness: 10 to 19mm; 10mm to 12mm (with line profile); 13.52mm to 19mm (without line profile)
Line Profiles: Individually manufactured for draught-proofing
Max. Panel Width: 1250mm
Max. Panel Height: 4000 mm
Max. Panel Weight: 150 kg (for both swing & sliding panels)
Panel Stacking: Parallel & Perpendicular, based on site conditions.
Panel Support: 2 Roller Support
Glass Type: TSG & LSG
Profile Finish: Similar to Satin Stainless Steel Finish
Max. Panels per Side: One-side parking: 10 panels; Double-side parking: 20 panels
Area of Application: Individual Bungalows / Residences / Villas/Hotels / Spas / Resorts/ Corporate Offices / IT Parks/ Retail Outlets / Shopping Malls
Advantages: Total space management
Dimensions:
Max panel width & height: 1250mm (width) 4000 mm (Height)
Panel weight: 150 kg (Swing & Sliding Panel)
