Showing all 3 results

  • CRISTALLO

    CRISTALLO

    The shower cubicle system comprises one fixed panel and one swing panel. The system includes:

    Wall hinge double side plate, Glass/wall bracket, Water dispenser, Wall seal, Magnetic seal (180 degrees), Handle with towel rod (450 x 200 x 19 mm), Support bar (19 mm diameter) with glass clamp and wall clamp 1.9 m long rod.

    Both the fixed and swing panels are constructed from 8 mm thick glass. The standard system height is 2000 mm, and the width is 1900 mm. The system has a polished chrome finish. Sealant is applied at corners and the bottom of the fixed panel. The system is tested to DIN EN 14428:2004 standards, for required classes & levels.

    Key Features and Specs:
    Configuration: One fixed panel, one swing panel
    Components:
    Wall hinge double side plate, Glass/wall bracket, Water dispenser, Wall seal, Magnetic seal (180 degrees), Handle with towel rod (450 x 200 x 19 mm), Support bar (19 mm diameter), Glass clamp, Wall clamp 1.9 m long rod
    Glass Thickness: 8 mm (fixed and swing panels)
    System Height: 2000 mm
    System Width: 1900 mm
    Finish: Polished chrome
    Sealant: Applied at corners and bottom of fixed panel
    Testing Standard: DIN EN 14428:2004 for class & levels.
    Glass Thickness: 8& 10mm
    Dimensions: Max: 2500mm height Standard width 1300mm

    View Product

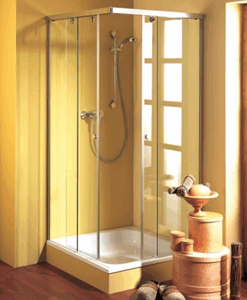

  • SHOWER-SLIDING

    SHOWER-SLIDING

    The shower cubicle system comprises one fixed panel and one sliding panel.

    The system includes: Glass in-line panel, Glass sliding door, Overhanging ball bearing rollers for sliding door, Sliding door knob, Pair of magnetic seals, Magnetic support profile, Door stopper, Water disperser, Wall connection profile, Bracket for joining, Glass protection seal, Cover profile to clip into the bottom of the track, Frame wedge, Slide frame profile, Frame bracket, Cover profile angular, Square profile, Glass guide to guide the sliding door.

    Both the fixed and sliding panels are constructed from 8 mm thick glass, with a maximum door weight of 30 kg. The fixed panel and door panels overlap by approximately 40 mm. The standard system height is 2000 mm, and the width is 2000 mm. The rollers, door knob, and all aluminum profiles have a polished chrome finish. Sealant is applied at the corners and bottom of the fixed panel. The product is certified to DIN EN 14428:2004.

    Key Features and Specs:
    Configuration: One fixed panel, one sliding panel
    Components: Glass in-line panel, Glass sliding door, Overhanging ball bearing rollers for sliding door, Sliding door knob, Pair of magnetic seals, Magnetic support profile, Door stopper, Water disperser, Wall connection profile, Bracket for joining, Glass protection seal, Cover profile to clip into the bottom of the track, Frame wedge, Slide frame profile, Frame bracket, Cover profile angular, Square profile, Glass guide.
    Glass Thickness: 8 mm (fixed and sliding panels)
    Max Door Weight: 30 kgs
    Overlap: Fixed panel and door panels overlap by approx 40 mm
    System Height: 2000 mm
    System Width: 2000 mm
    Finish: Polished chrome (rollers, door knob, aluminum profiles)
    Sealant: Applied at corners and bottom of fixed panel
    Certification: DIN EN 14428:2004
    Dimensions:
    Max height: 2500mm
    Standard width: 2000mm
    Glass thickness: 8 & 10mm

    View Product
  • SHOWER-SWING

    SHOWER-SWING

    The shower cubicle system comprises one fixed panel and one swing panel. The system includes:

    Wall hinge double side plate, Glass/wall bracket, Water dispenser, Wall seal, Magnetic seal (180 degrees), Handle with towel rod (450 x 200 x 19 mm), Support bar (19 mm diameter) with glass clamp and wall clamp 1.9 m long rod.

    Both the fixed and swing panels are constructed from 8 mm thick glass. The standard system height is 2000 mm, and the width is 1900 mm. The system has a polished chrome finish. Sealant is applied at corners and the bottom of the fixed panel. The system is tested to DIN EN 14428:2004 standards.

    Key Features and Specs:
    Configuration: One fixed panel, one swing panel
    Components: Wall hinge double side plate, Glass/wall bracket, Water dispenser, Wall seal, Magnetic seal (180 degrees), Handle with towel rod (450 x 200 x 19 mm), Support bar (19 mm diameter), Glass clamp, Wall clamp 1.9 m long rod.
    Glass Thickness: 8 mm (fixed and swing panels)
    System Height: 2000 mm
    System Width: 1900 mm
    Finish: Polished chrome
    Sealant: Applied at corners and bottom of the fixed panel
    Testing Standard: DIN EN 14428:2004
    Dimensions:
    Max height:     2500mm
    Standard width: 1300mm
    Glass thickness: 8 & 10mm

    View Product
