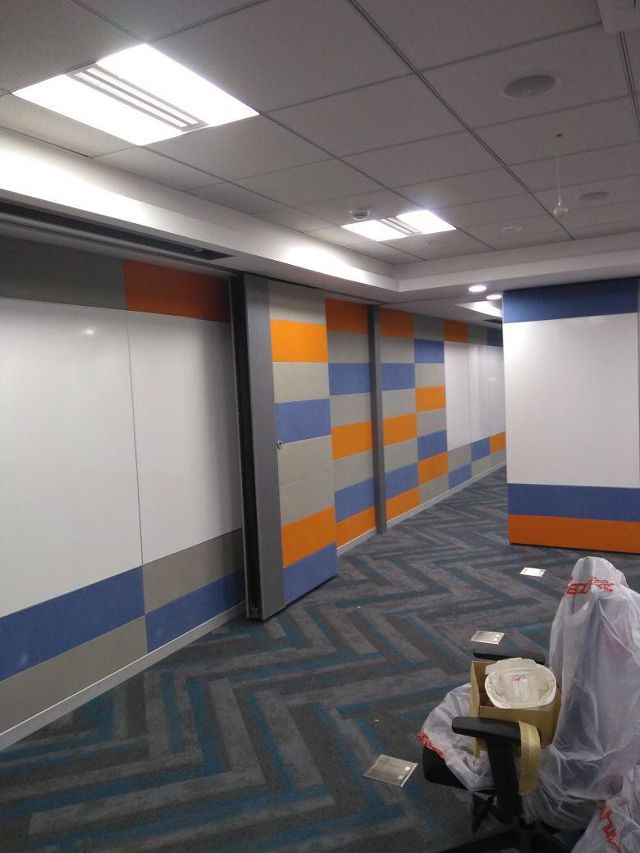

Acoustic Operable Partition Variflex Top 100 – Semi Automatic

The user-friendly partitioning solution combined with operating convenience, excellent cost efficiency and high acoustics properties makes Variflex Semi-Automatic to satisfy all requirements that arise in applications requiring flexible space division, sophisticated surface finish and acoustic efficiency. Electronic extension and retraction of sealing strips enables the user to save time, energy and cost while increasing the whole system efficiency.

Dimensions:
Element thickness: 100 mm Element width (min. / max.): 850 – 1200mm Clear height (min. / max.): 2000 – 9000mm Contact pressure of horizontal sealing strips per element: 800 N Track system: R type / smart track 1. Single / double leaf door Mode of Operation :Elements moved manually supported by electronically controlled extension and retraction of the sealing strips and telescopic element.
Standards: Sound attenuation defined to EN 20 140, in Rw:57dB
