ACOUSTIC OPERABLE PARTITION VARIFLEX TOP 120 – MANUAL

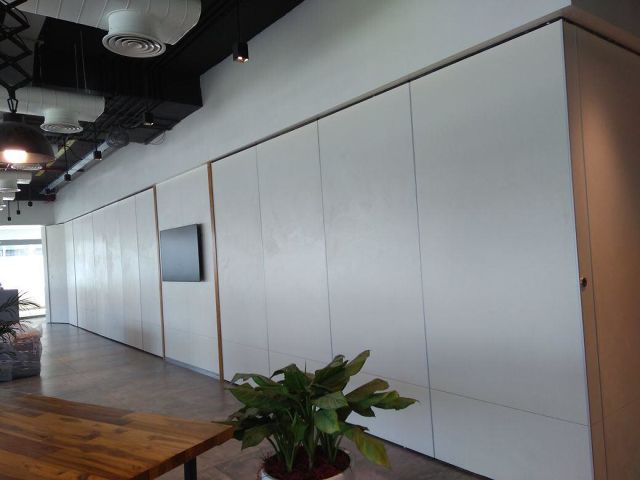

The operable wall system consists of individually movable elements, 120mm thick, suspended from a top track only. Each panel has top and bottom operable pressure seals, operated by a crank handle, to ensure optimum contact pressure up to 800N. The elements are interconnected by a positive locking concave/convex aluminum profile, integrated with a magnetic profile to ensure a contact pressure of 40N/m. Each element is suspended on multi-directional rollers. Elements are constructed of a non-deflecting steel tube frame and aluminum profiles, bolted together. The frame is clad on either side with 16mm MDF and 10mm MDF panels, hung in acoustic isolation from the frame and allowed to vibrate independently. The facia panels are easily removable. The panel is filled with high-density rock wool to meet the specified sound insulation requirements. The telescopic element opens and closes 170mm and is operated by a single mechanism for both the top and bottom seals. The system includes an R-type/smart track and an optional single-leaf pass door.

Key Features and Specs:
Standards: Sound attenuation defined to EN 20 140, in Rw: 58dB, 60dB
Area of Application: Training rooms, Classrooms & Boardrooms,
Convention centers, Banquet halls.
Advantages: Best suited for high sound reduction application, Can be used up to 9m in partition height.
Dimensions:
Element thickness: 120 mm
Element width (min. / max.): 800 – 1200mm
Clear height (min. / max.): 2000 – 9000mm
Contact pressure of horizontal sealing strips per element: 800 N
Track system: R type / smart track
Options: Single leaf door.
Mode of Operation: Manual operation of the elements and actuation of the sealing strips.
