SLIDING DOOR WITH SOFT CLOSING-M60

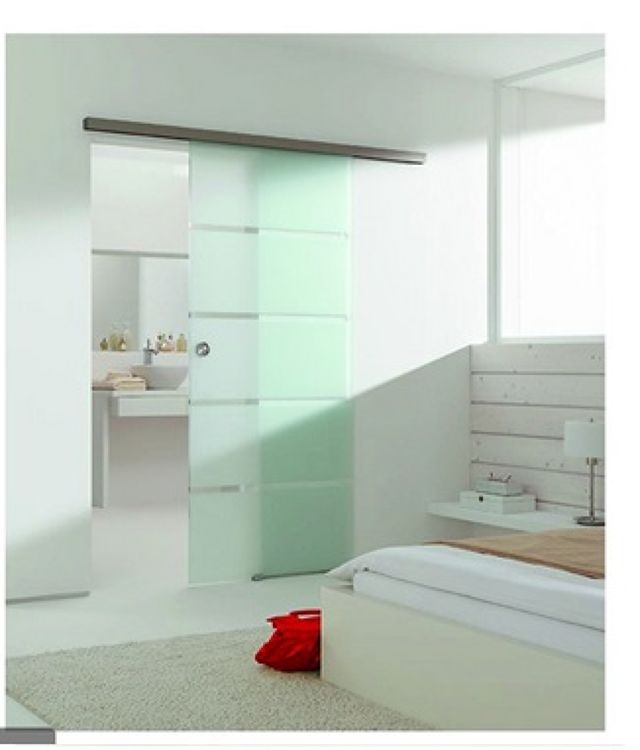

The dormakaba Muto M 60 Sliding system includes the track and accessories for Ceiling or Wall fixing. It is suitable for doors weighing up to 60kg per panel, with a maximum door width of 1300mm and a maximum door height of 3000mm. The standard track length is 3000mm, provided in SSS (Satin Stainless Steel) finish. This system is suitable for both single and double panel applications and has been tested to 50,000 cycles, conforming to DIN EN 1527 standards. It is compatible with glass doors (8-12mm) and wooden doors (30-50mm).

Key Features and Specs:
System: dormakaba Muto M 60 Sliding system
Application: Ceiling or Wall Fixing
Max. Door Weight: 60 kg/Panel
Max. Door Width: 1300mm
Max. Door Height: 3000mm
Standard Track Length: 3000mm
Track Finish: SSS (Satin Stainless Steel)
Panel Type: Single panel and Double Panel
Testing: Tested to 50,000 cycles
Standards: Conforms to EN 1527 & EN 1670
Glass Door Thickness: 8-12mm
Wooden Door Thickness: 30-50mm
Door dimension: Max. 1300mm (Width) Max. 2500mm (Height) Max. 60 Kgs. (Weight / Panel)
Glass Thickness: 8 to 12mm TSG
Track Dimension: Width-55mm & Height-58mm
Thickness Timber door : Wood thickness : 30mm to 50mm
Area of Application: Internal office doors, Internal doors in private homes
Advantages/Options:
Optional Features: Soft Closing (Dormotion – Closing and Opening Side), Timber door.
Options: 1. With and Without Sidelight System 2. Dormotion (Both Closing & Opening side) 3 Timber Door Application 4. Wall / Ceiling / On Glass

Dimensions:
Max. 1300mm (Width)
Max. 2500mm (Height)
Max. 60 Kgs. (Weight / Panel)
Glass Thickness: 8 to 12mm
TSG Track Dimension: Width-55mm & Height-58mm
