Showing all 5 results

  • Argus Sensor Barrier

    Argus Sensor Barrier

    The Argus 80 is a visually appealing interlock system featuring an integrative aluminium profile design with a Full Cast Layer and wraparound covers, offering extensive colour customization options. 1 It incorporates vertically installed, design-oriented drive and locking components (75 mm diameter) on the guiding element, along with two transparent, impact-resistant plastic door leaves with an upper edge height of 990 mm. Its software ensures low energy movement compliant with DIN 18650 / EN 16005 by adapting speed to door mass, while the integrated control system operates on 100–240 VAC with low standby power consumption. The system provides motorized, electronically controlled movement in both entrance and exit directions upon release signals, with entry monitored by a vertical sensor and passage by a leg-area sensor strip, detecting unauthorized direction and triggering alarms. Advanced sensors include a sneak-by guard, minimizing false alarms and enabling trolley passage, and the door leaves can be locked in any position to prevent unauthorized use. The same sensors manage separation and monitor the swinging area, immediately stopping or decelerating movement if triggered to prevent injury. Certifications include emergency exit approval with optional components, EPD, CB Scheme, UL Certification and tested control unit for North America, and RoHS compliance. The system offers a passage width of 650 mm, a total width of 1060 mm, an interlock height of 995 mm, an interlock length of 1660 mm, and a guiding element width of 130 mm

    Dimensions:
    Passage width: 650 mm
    Total width: 1060 mm
    Interlock height: 995 mm
    Interlock length: 1660 mm
    Guiding element width: 130 mm
    Wide range of colour combinations &, fit in with the respective architecture available

    View Product
  • Half Height Sensor Barriers

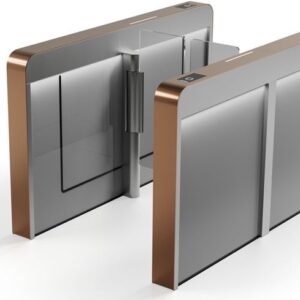

    Half Height Sensor Barriers

    The Half Height Sensor Barrier HSB-E07 is a swing barrier designed for office and administrative buildings, featuring low-energy servo drives with tooth holding brake technology and polycarbonate wings with toughened glass side walls, achieving an MCBF of 10 million cycles (650mm width) or 8 million cycles (900mm width). Electrically controlled in both directions for enhanced safety, it includes a basic sensor system for passage monitoring and obstruction detection, automatic reset after power failure with immediate access area security, and the ability to be locked in any position while opening under load for panic situations, all while maintaining low standby power consumption (17 VA) and offering customizable parameters. Its modular design provides various adaptation possibilities, including suitability for emergency and escape routes, barrier-free access options (900mm passage width), protection against entry from below, trolley passage, and child detection (Security level 2), with total widths of 1070/1320mm (including a handicap lane), a passage width of 650/900mm (handicap lane), an interlock height of 945mm, and an interlock length of 1660mm, integrating the ETS 22 control system and power supply (110-230 VAC, 50/60 Hz)

    Dimensions:
    Total Width: 1070/1320mm(Handicap lane)
    Passage Width: 650/900mm(Handicap lane)
    Interlock height: 945mm
    Interlock length: 1660mm

    View Product
  • Personal Inter Lock Orthos PIL-C01

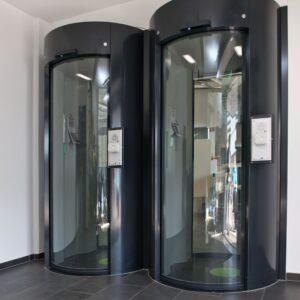

    Personal Inter Lock Orthos PIL-C01

    The interlock has a steel structure with metal cladding. The control unit and drive are integrated into the upper part of the body. The upper dustproof cover is made from raw aluminium plating. There is a maintenance opening in the lower ceiling plate. Two closable maintenance openings are integrated into the covers above the door leaves. The sliding wings are made of aluminium profiles with LSG 10 mm glazing flush-sealed to the outside. Moving safety strips for personal security are installed in the door leaves. There is a light scanner and a contact mat in the interlock with a zone for presence detection. Inner sidewalls limit the interlock space to the passage width of the interlock. A safety strip on the inner side wall protects fingers from getting stuck in the door leaf. Two LED lights, approx. 30,000 h service life, are integrated into the ceiling plate. Including floor element with guidance system and mounting of the security contact mat with black rubber nub covering.

    Dimension:
    Upper part of the body:300 mm
    Passage width: 550, 680 mm
    Outside diameter: 1020, 1220 mm
    Headroom: 2100mm
    Total Height: 2400 mm

    View Product
  • Security Revolving Door

    Security Revolving Door

    The SRD-E01 is a security revolving door with a low energy drive that operates upon receiving authorization from an access control system, available in 3 or 4 leaf configurations with diameters ranging from 1500 to 2000mm and a maximum height of 2300mm, featuring end point locking for enhanced safety. 1 Electrically, it integrates a control unit and operates on a 110-230V AC 50/60 Hz power supply, offering three freely programmable floating contacts for on-site customization. This door provides efficient and durable building protection with safe single passage monitoring, offering bullet, burglar, fire, and escape route resistant options, accommodating up to 20 passages per minute within a compact footprint, ensuring user safety with a Mean Cycles Between Failures (MCBF) of 2.0 million, and can be customized in glass, aluminum, or stainless steel for internal or facade installation, including thermal separation and optional night slides, making it suitable for high-security areas

    Dimension:
    Height max- 2300 mm
    Diameter from 1500-2000mm.

    View Product
  • TRIPOD BARRIER

    TRIPOD BARRIER

    This half-height motorized tripod turnstile, featuring three 120-degree rotating rigid stainless steel bars and a semi-gloss AISI 304 stainless steel housing, offers bidirectional electrical control with a low-energy servo drive and manual start, automatically cancelling the release if unused within a set time. In case of power failure, the unit becomes free in both directions with fold-down bars and automatically returns to its home position upon power restoration; it boasts a Mean Cycle Between Failures (MCBF) of 11 million cycles and an IP 54 rating, includes collapsible bars with automatic reset, unlocks under pressure, is lockable in each position, and is suitable for emergency escape routes, all while providing a modular design with space for integrating on-site components and offering widths of up to 770mm and 1020mm.

    Dimension:
    Width Max -770mm and 1020mm.

    View Product
