Showing all 2 results

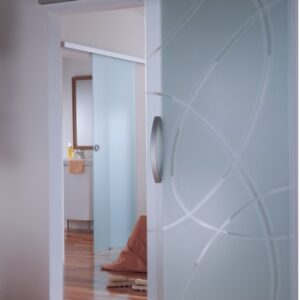

  • SLIDING DOOR SYSTEM WITH SELF CLOSING(120KG)

    SLIDING DOOR SYSTEM WITH SELF CLOSING(120KG)

    The dormakaba Muto Sliding system 120 Premium includes the track and accessories necessary for wall fixing. It is suitable for doors weighing up to 120 kg, with a door width range of 850mm to 1300mm and a maximum door height of 3000mm. The standard track length is 3000mm, provided in EV1 finish. This system is designed for single-panel applications and has been tested to 50,000 cycles, conforming to DIN EN 1527 standards. It is compatible with glass doors (8-12mm) and wooden doors (30-50mm).

    Key Features and Specs:
    System: dormakaba Muto Sliding system 120 Premium
    Application: Wall fixing
    Max. Door Weight: 120 kg
    Door Width: 850mm – 1300mm
    Max. Door Height: 3000mm
    Standard Track Length: 3000mm
    Track Finish: EV1
    Panel Type: Single panel
    Testing: Tested to 50,000 cycles
    Standards: Conforms to EN 1527 & EN 1670-100000 Cycles
    Glass Door Thickness: 8-12mm
    Wooden Door Thickness: 30-50mm
    Door dimension: Min. 850mm (Width) Max. 1500mm (Width) Max. 3000mm (Height) Max. 120 Kgs. (Weight)
    Area of Application: Internal office doors; Internal doors in private homes.

    Dimensions:
    Min. 850mm (Width)
    Max. 1500mm (Width)
    Max. 3000mm (Height)
    Max. 120 Kgs. (Weight)

    View Product

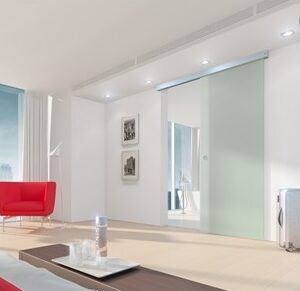

  • SLIDING DOOR SYSTEMS (UPTO 150 KGS)

    SLIDING DOOR SYSTEMS (UPTO 150 KGS)

    The dormakaba Muto Sliding system XL150 includes the track and accessories necessary for wall fixing. It is suitable for doors weighing up to 150 kg, with a maximum door width of 1300mm and a maximum door height of 2500mm. The standard track length is 3000mm, provided in EV1 finish. This system is designed for single-panel applications and has been tested to 500,000 cycles, adhering to DIN EN 1527 standards. It is compatible with glass doors (8-12mm) and wooden doors (30-50mm).

    Key Features and Specs:
    System: dormakaba Muto Sliding system XL150
    Application: Wall fixing
    Max. Door Weight: 150 kg
    Max. Door width: 1300mm
    Max. Door height: 2500mm
    Standard Track Length: 3000mm
    Track Finish: EV1
    Panel Type: Single panel
    Testing: Tested to 500,000 cycles
    Standards: Conforms to EN 1527
    Glass Door Thickness: 8-12mm
    Wooden Door Thickness: 30-50mm
    Door dimension : Max. 2500mm (Width), Max 3000mm (Height), Max 150 kg (Weight)
    Glass Thickness: 8 to 13.52mm TSG
    Track Dimension: Width – 72mm & Height – 69mm
    Finish : EV1
    Area of Application: Internal office doors; Internal doors in private homes.
    Options: With and Without Sidelight System; Dormotion (Both Closing & Opening side); Synchro; Timber Door Application; Wall / Ceiling / On Glass

    Dimensions:
    Max. 2500mm (Width)
    (Maintain Weight of 150kgs) Max. 3000mm (Height) (Maintain Weight of 150Kgs) Max. 150 Kgs. (Weight/ Panel)

    View Product
