Variflex

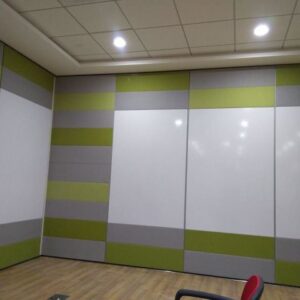

The operable acoustic partition system consists of 100mm thick, individually movable elements, suspended from a top track only. Each panel features top and bottom operable pressure seals activated automatically by a 24V DC motor, ensuring optimum contact pressure up to 800N. The elements are interconnected by a positive locking convex/concave aluminum profile, integrated with magnetic strips having a linear attraction of 40 N/m. Elements are constructed of a non-deflecting steel tube frame and aluminum profiles, bolted together. The frame is clad on either side with 16 mm MDF panels, hung in acoustic isolation from the frame and allowed to vibrate independently. The facia panels are easily removable. The panel interior is filled with high-density rock wool to meet specified sound insulation requirements. The telescopic element opens and closes 120 mm and is operated by a single mechanism for both the top and bottom seals.

Key Features and Specs:
Standards: Sound attenuation defined to EN 20 140, in Rw: 45dB / 50dB / 52dB / 53dB / 55dB

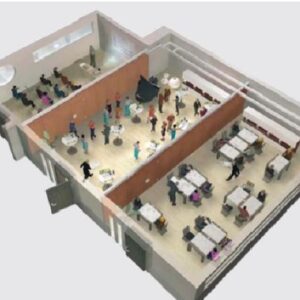

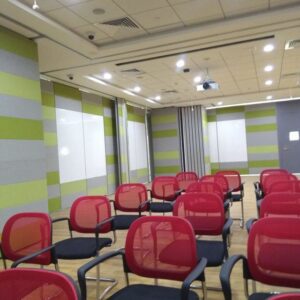

Area of Application: Training rooms, Classrooms & Boardrooms, Banquet halls, Convention Halls.
Advantages: Easy to operate the panel, Less human interference, Operational time is less.
Dimensions:
Element thickness: 100mm
Element width (min. / max.): 850 – 1200 mm
Clear height (min. / max.): 2000 – 12000mm
Contact pressure of horizontal sealing strips per element: 800 N
Track system: R type / smart track
Options:
Single / double leaf door, Vision panel, Angled Panel, Door with Vision Panel
Mode of Operation: Elements moved manually, supported by electronically controlled extension and retraction of the sealing strips and telescopic element.

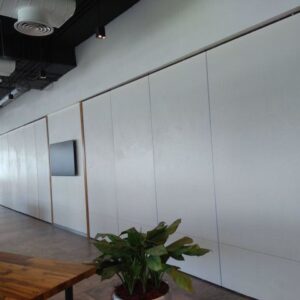

The operable wall system consists of individually movable elements, 120mm thick, suspended from a top track only. Each panel has top and bottom operable pressure seals, operated by a crank handle, to ensure optimum contact pressure up to 800N. The elements are interconnected by a positive locking concave/convex aluminum profile, integrated with a magnetic profile to ensure a contact pressure of 40N/m. Each element is suspended on multi-directional rollers. Elements are constructed of a non-deflecting steel tube frame and aluminum profiles, bolted together. The frame is clad on either side with 16mm MDF and 10mm MDF panels, hung in acoustic isolation from the frame and allowed to vibrate independently. The facia panels are easily removable. The panel is filled with high-density rock wool to meet the specified sound insulation requirements. The telescopic element opens and closes 170mm and is operated by a single mechanism for both the top and bottom seals. The system includes an R-type/smart track and an optional single-leaf pass door.

Key Features and Specs:
Standards: Sound attenuation defined to EN 20 140, in Rw: 58dB, 60dB

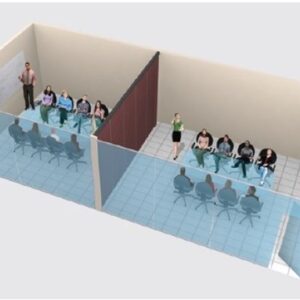

Area of Application: Training rooms, Classrooms & Boardrooms,
Convention centers, Banquet halls.
Advantages: Best suited for high sound reduction application, Can be used up to 9m in partition height.
Dimensions:
Element thickness: 120 mm
Element width (min. / max.): 800 – 1200mm
Clear height (min. / max.): 2000 – 9000mm
Contact pressure of horizontal sealing strips per element: 800 N
Track system: R type / smart track
Options: Single leaf door.
Mode of Operation: Manual operation of the elements and actuation of the sealing strips.
